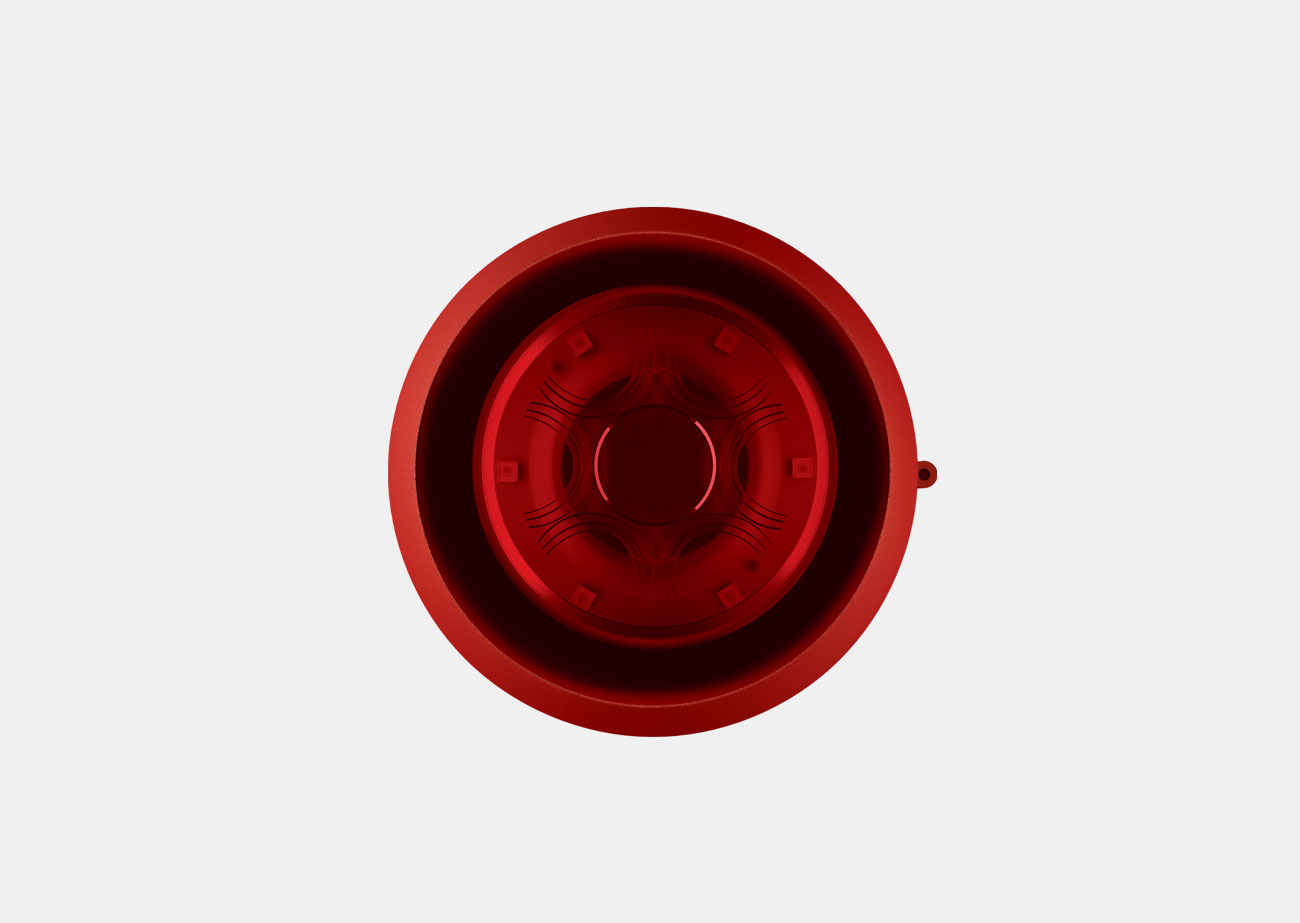

Conventional Strobe Siren

ZI-SS 88

Flasher sirens complete the fire detection process by generating visual and audible alarms. ZITEX conventional flasher siren, model ZI-SS 88, with a unique design, has the ability to support 32 different tones and can be used in two modes of flasher siren and only flasher. This model can be installed both on the ceiling and as a wall, and by anticipating the socket terminal behind it, you can experience easy, fast and standard installation. Changing the tone and functional modes is done through the switches installed behind the flasher siren.

Professional engineering design, standard materials, ABS heat, shock and vibration resistant

Allocate enough space for siren line wires and separate terminals for input and output wires

False Alarm Probability Technology (F.A.P)

Ability to select 32 tones and three different sound levels

Can be used in two modes of flasher siren and flasher only

SCRIPT FOR SLIDER CAROUSEL

Conventional Strobe Siren

ZI-SS 88

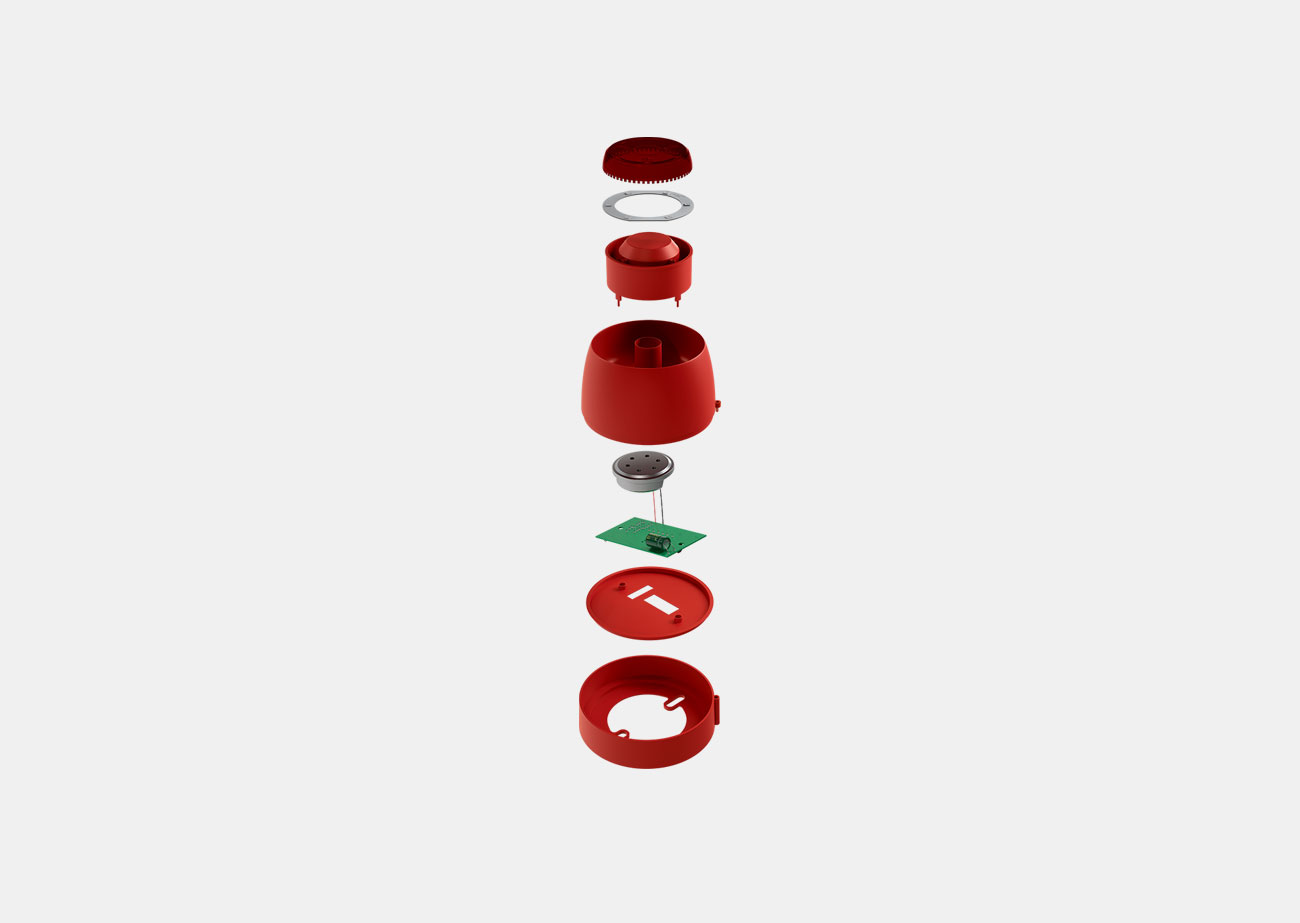

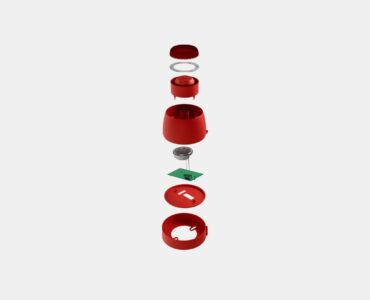

The body is engineered with heat, shock and vibration resistant ABS. The convenient space behind the flasher siren can easily accommodate the siren line wires for standard connection. The flasher siren circuit is made of two-layer metallized fiberglass and compliance with the requirements of Iranian National Standard No. 18687-3 and International Standard EN 54-3 has caused that the presence of moisture, corrosive substances and vapors has no effect on the performance of the flasher siren. Other advantages of this product include protection against reverse polarity as well as chrome plating of metal parts to protect against rust.

F.A.P (False Noise and Alarm Elimination) technology offers complete immunity to electromagnetic and environmental noise. Due to the use of standard and high quality electrical and electronic materials, the angle of the siren and its continuous operation do not have a negative impact on the sound level. The ability to change the volume at three levels of low, medium and high allows the user to select the desired volume in different indoor environments with different needs.

ZITEX products are produced and quality controlled using the latest machinery and equipment. The golden guarantee and fast and available after-sales service bring extra peace of mind to the consumer. Conventional flasher siren, model ZI-SS 88, with a 16-digit tracking code on the back of the product, has the ability to inquire about authenticity through the ZITEX website.

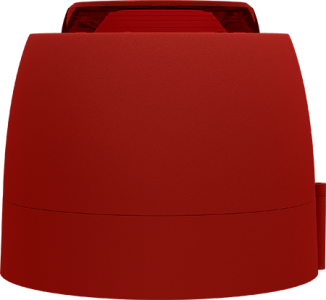

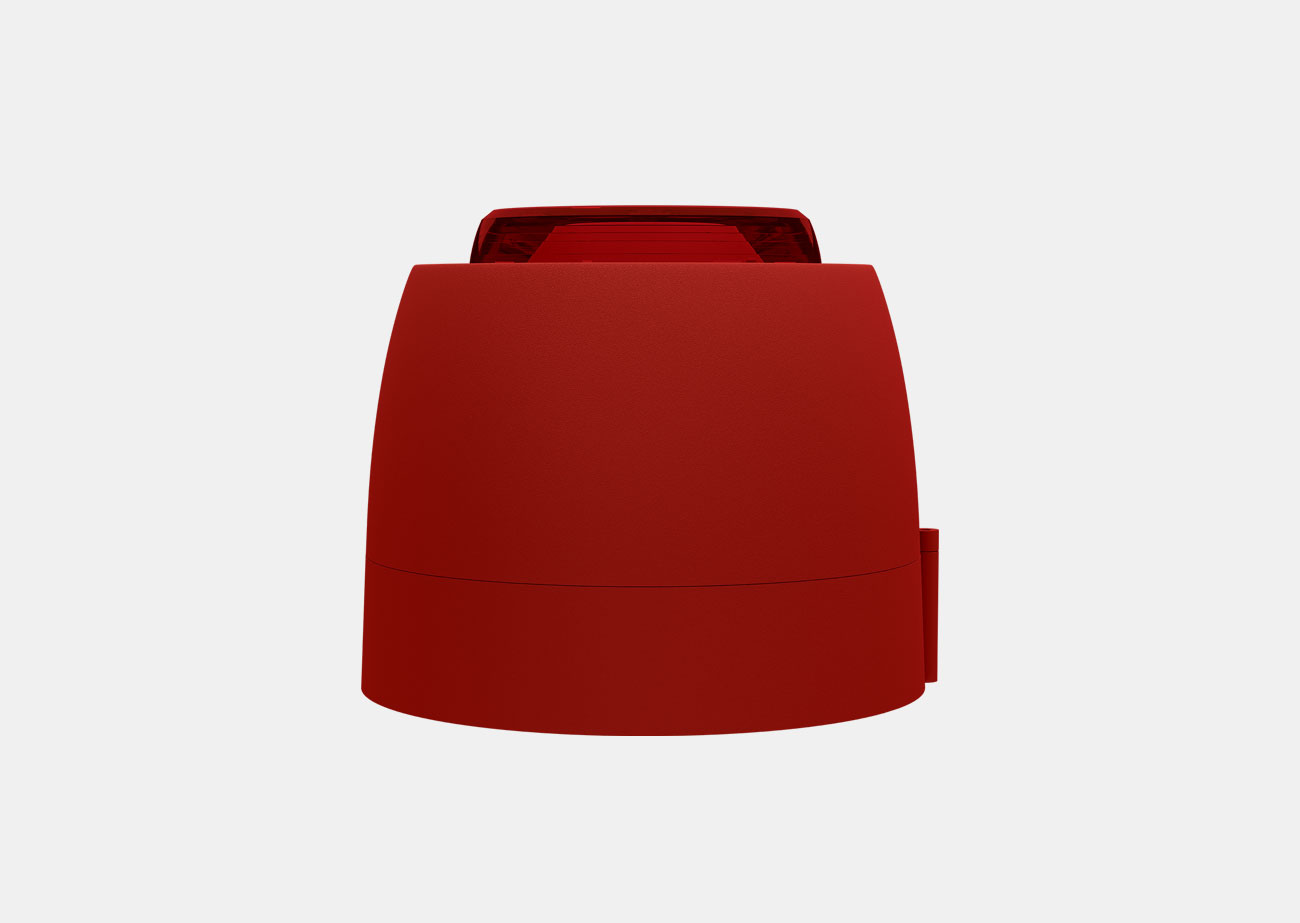

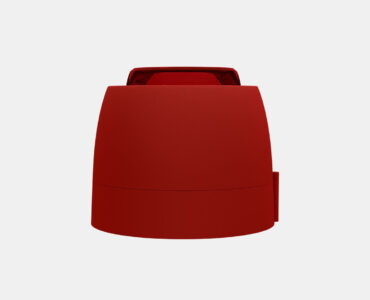

Product Size

< 9.3 CM >

< 8.5 CM >

Technical specifications	ZI-SS 88
Design standard	BS EN-54-3
Voltage range	24 ± 3 V
Current in silent mode at voltage 24V D.C.	0 A
Current in alarm mode at voltage 24V D.C.	Low Volume ≤ 11 mA Med Volume ≤ 19 mA High Volume ≤ 37 mA
Operating temperature range	-15 °C — +80 °C
Body color	Red
Flashing color	6 Red LEDs
Frequency range	440 Hz – 2900 Hz
Average sound level in 1 meter	at Low Mode ~80±5 dB at 1 m at Med Mode ~90±5 dB at 1 m at High Mode ~100±5 dB at 1 m
Functional humidity range	(Non-condensing) 5% — 95% RH
Type of siren	(Indoor) Type A
Degree of protection	IP 21 C
Electrical contact material	Metal
Body Material	Heat resistant ABS body
Dimensions	93 x 85 mm
Weight	181 g
