Conventional Fix Heat / ROR Detector ZI-H 720

Conventional Fix Heat / ROR Detector

ZI-H 720

It can be said that the secondary signal of a fire alarm after smoke is an increase in ambient temperature. Thermal detectors are responsible for analyzing changes in ambient temperature. According to EN 54-5, two types of performance can be considered for a thermal detector: performance by reaching a constant temperature threshold and performance in the event of a sudden change in ambient temperature (Class S and R). In designing and manufacturing ZITEX heat detectors, these two classes have been considered.

Double-layer metallized fiberglass circuit with moisture, vapor and corrosion resistant layer

Production of electronic boards using modern equipment based on SMT technology

False Alarm Probability Technology (F.A.P)

Detection of ambient temperature increase in two modes of constant (class A1S) and incremental (class A2R) in accordance with EN 54-5

SCRIPT FOR SLIDER CAROUSEL

.scrollsequence-spacer{display:none} .scrollsequence-pages-wrap {height:initial} .scrollsequence-page {position:relative;opacity:initial;display:block ;visibility:initial}

Conventional Fix Heat / ROR Detector

ZI-H 720

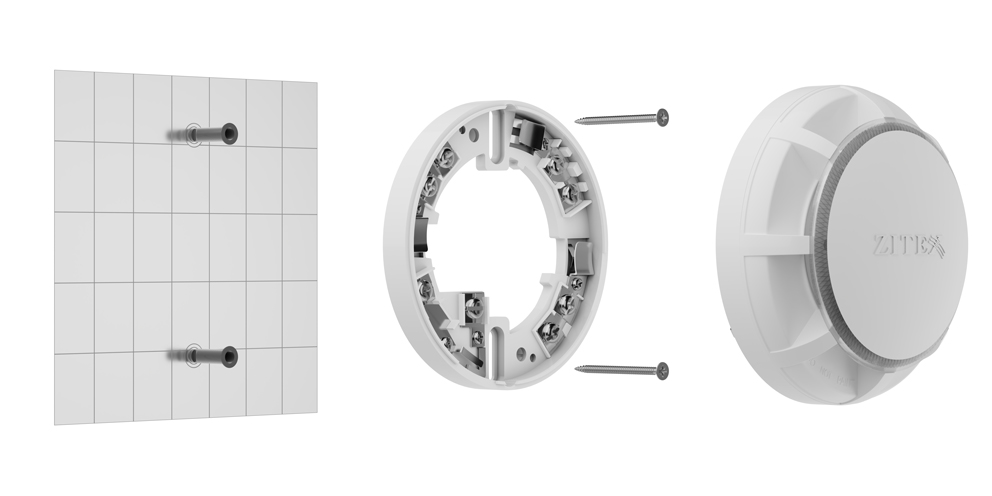

The engineered body of the detector is made using heat-resistant ABS. A 360-degree crystal indicator with two flashing modes, green (normal mode) and solid red (alarm mode), shows the detector operation. Providing enough space behind the detector to enter the positive and negative wires of the zone as well as the remote indicator wire, and the use of double elevator terminals, has made the detector installation much easier. The detector circuit is designed to protect against reverse polarity. The circuit is made of two-layer metallized fiberglass and the electronic components are assembled on the circuit using SMT technology.

Moisture, vapor and corrosion resistant layers have also been applied to the circuits. Specialized programming of microprocessors ensures the operational reliability of the detector. Both software and hardware control the environmental noise and F.A.P (False Alarm Protection) technology has been used to achieve this. Like all ZITEX detectors, this model has the ability to connect remotely. The metal parts of the detector are coated with chrome plating to protect against corrosion.

The most modern laboratory equipment and production machines are responsible for the design, production and quality control of this product. Similar to other ZITEX products, Golden Warranty, fast and accessible hardware and software after-sales service, product authentication tracking code and having a standard license are also among the features of this product. The requirements of National Standard No. 3710 and International Standard EN 54-5 have been observed with all the details in the design and production of this product.

Product Size

< 5.2 CM >

< 9.8 CM >

Technical Specifications	ZI-H 720
Detector class according to standard EN 54-5	A2R A1S
Circuit generation technology	SMT
Design standard	EN-54-5 and ISIRI 3710
Voltage range	12-32 V D.C.
Current in normal voltage 24V D.C.	≤50 μA
Current in alarm mode at voltage 24V D.C.	≤20 mA
Operating temperature range	-15 °C — +80 °C
Functional humidity range	(Non-condensing) 5% — 95% RH
Alarm temperature	60°C ± 3°C
RoR performance	8–15°C/min
Initial setup time	5 Sec
Area covered	According to EN 5839
Degree of protection	IP 40
Ability to see LEDs	360 °
LED function in normal mode	Flashing Green
LED function in alarm mode	Fixed Red
Wiring without remote	2-wires
Wiring with remote	3-wires
Body Material	Heat resistant ABS body
Dimensions	98 x 52 mm
Weight	138 g
