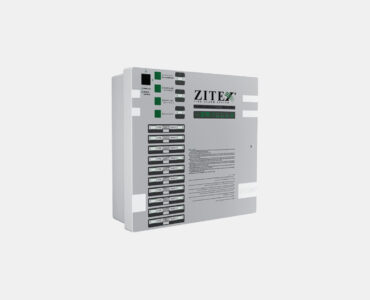

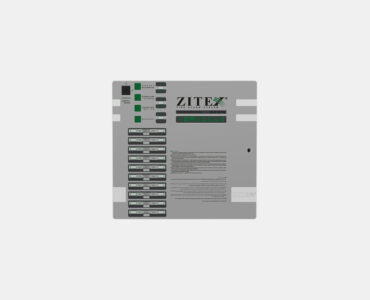

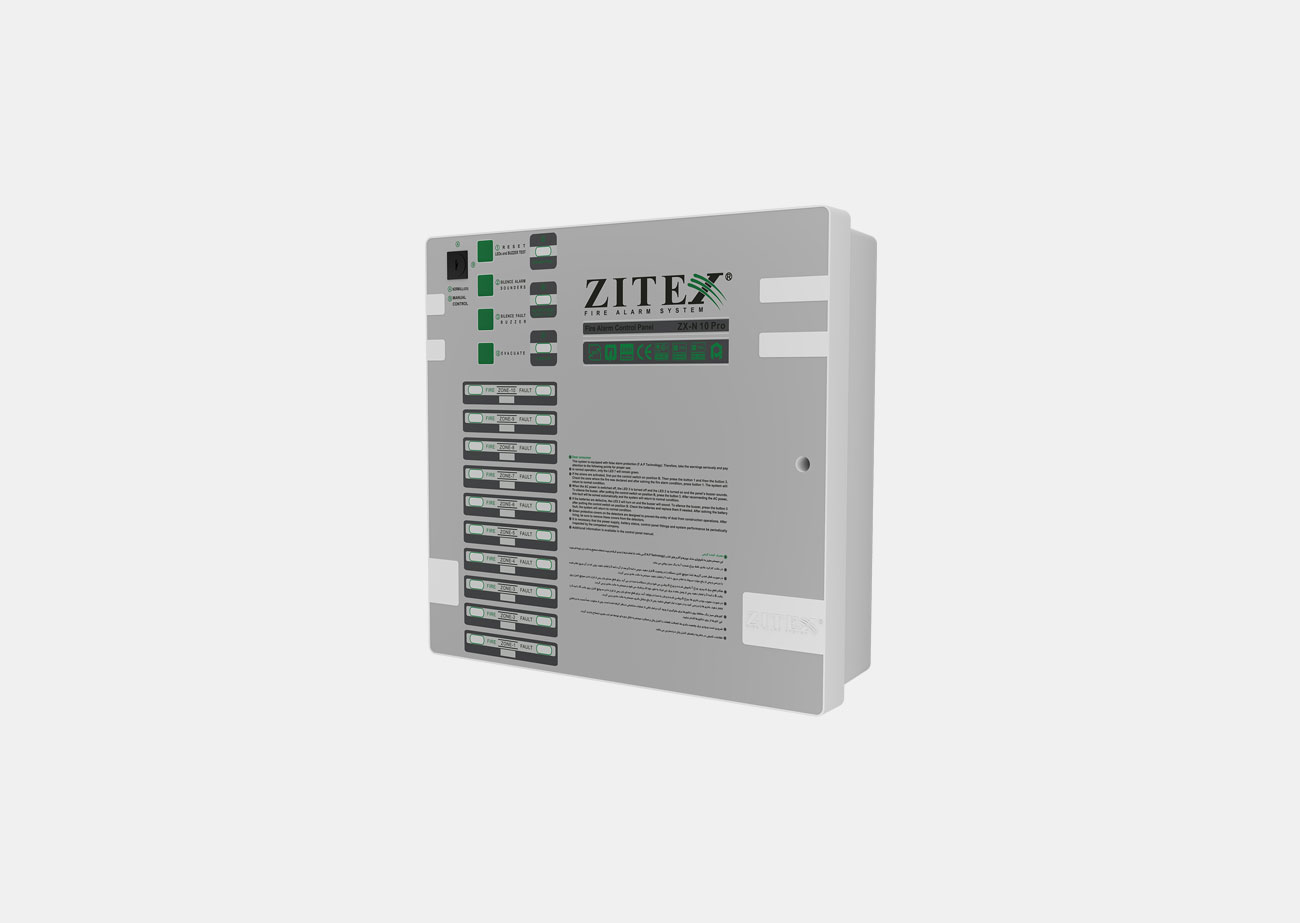

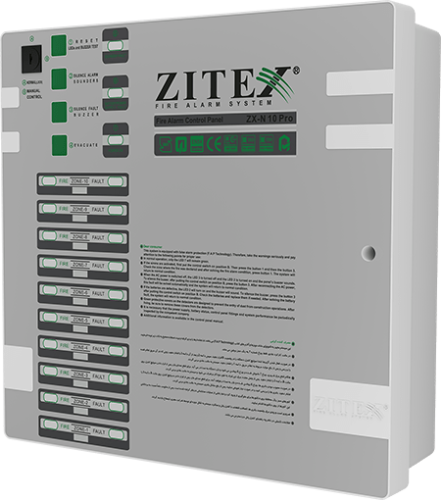

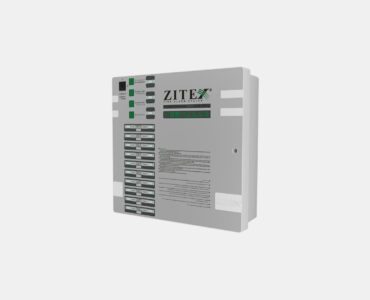

Conventional Control Panel ZX-N 10 Pro

Conventional Control Panel

ZX-N 10 Pro

10-zone professional control panel is suitable for 1 to 10-storey buildings without the need to add a zone card and with a unique and beautiful design. Capability to network and suitable dimensions for surface and flush mounting are other features of this product. The case material is selected from specialized ABS and thus the panel case has the ability to protect against heat, impact and vibration. In addition to the National Standard of Iran No. 3707, which is the basis for the design and manufacturing requirements of this product, all the requirements of the international standards EN 54-2,4 is also included in this product.

Specialized power supply to reduce consumption and prevent damage due to voltage fluctuations

Double-sided metallized fiberglass circuit with moisture, vapor and corrosion resistant layer

False Alarm Protection Technology (F.A.P)

Separate output for each zone

Ability to network without adding extra network card

Professional panel suitable for 1 to 10-storey buildings

SCRIPT FOR SLIDER CAROUSEL

Conventional Control Panel

ZX-N 10 Pro

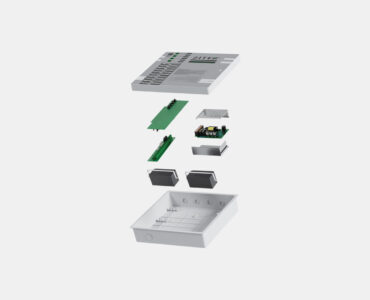

Wiring glands and corridors have provided easy and standard installation. Socket terminals and adequate space allocation are also useful and effective in this regard. Specialized switching power supply has reduced the damage caused by voltage fluctuations to zero. The circuits are made of double-sided fiberglass and the technology of assembling the components on the circuit is SMT.

To protect against corrosive and humid environments, a resistant layer has been used on the circuits. Access to False Alarm Protection (F.A.P) technology is made possible by specialized programming and the use of professional processors. Different types of detectors, manual call points, sirens and other sensors and peripheral protection equipment can be managed with this panel.

There is a separate output for each zone, which makes it very easy to do dual protection. To network the two panels together, it is enough to use two wires; Each panel has the ability to control performance from the other panel. Other features of the panel are as follows: performing walk test for zones, isolating zones, auxiliary relays to set up peripheral systems, the possibility of connecting the dialer, light weight and very suitable dimensions, and professional and advanced design.

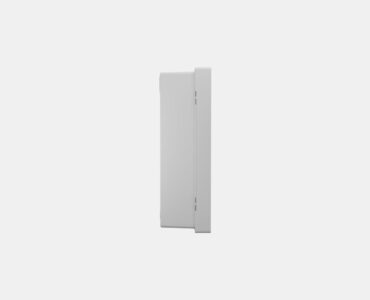

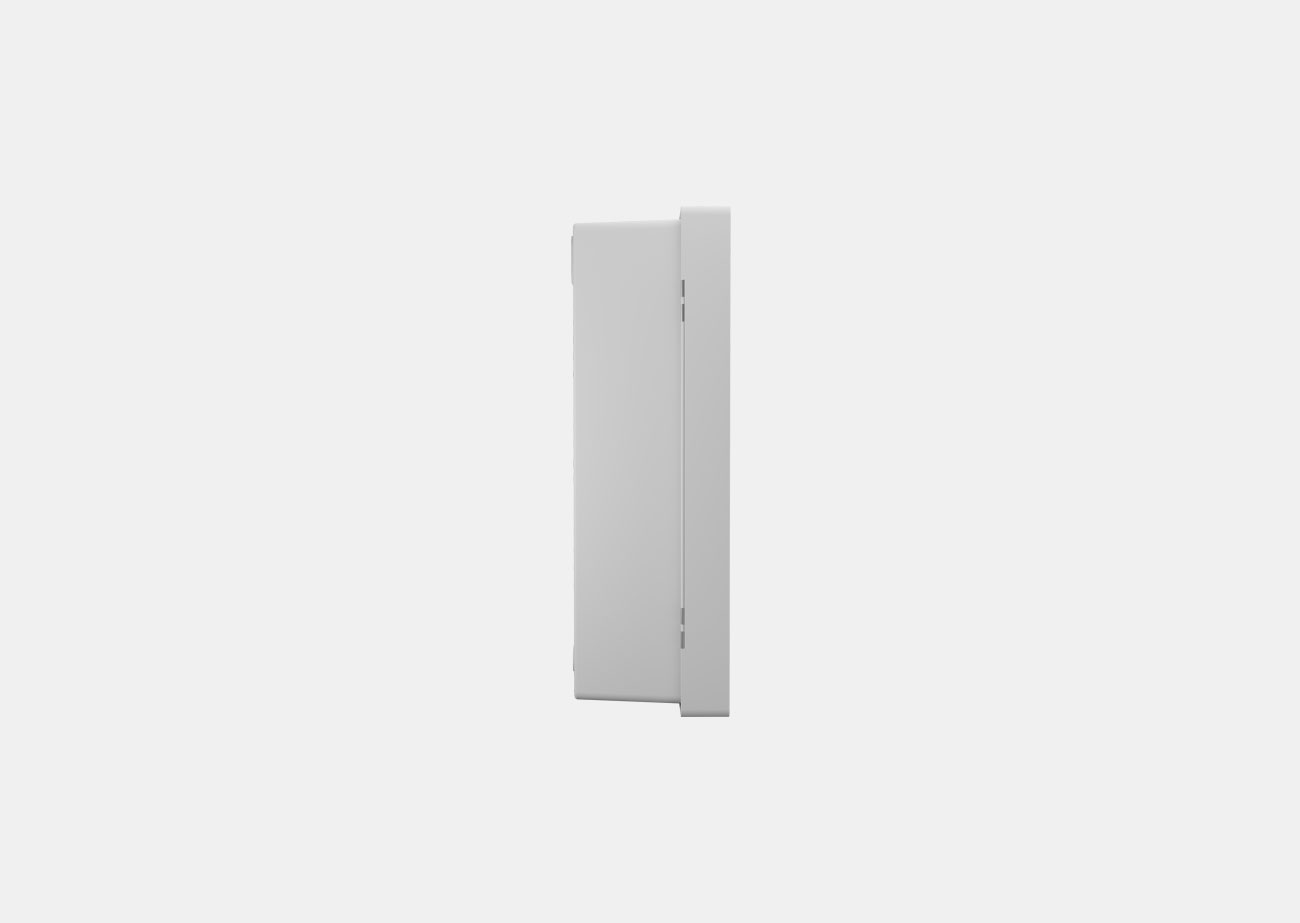

Product Size

< 10.4 CM >

< 32.7 CM >

Technical Specification	ZX-N 10 Pro
Design Standard	EN 54-2, 54-4 and ISIRI 3707
Technology of circuits	SMT
Number of zones	10 Zones
Expandibility with networking	20 Zones
Input voltage	220 ± 10% V A.C.
Internal power supply	30 V D.C.
Required battery	2×12 V (4.5Ah)
Min & Max output current	1500, 3500 mA
Output voltage	24 V D.C.
Maximum number of smoke detectors per zone	20 (ZITEX Detectors)
Maximum number of heat detectors per zone	20 (ZITEX Detectors)
Maximum number of manual call points per zone	Unlimited
Maximum number of electronic sounder (30 mA) per output	10
End of line resistor value	6800Ω (5% tolerance, 0.5W)
auxiliary relay contacts (Do not connect to main voltage)	1A 30 VDC max Voltage Free
Appropriate cable size for zones and sounder lines	1.5 mm²
Main terminal input, Sounder output, AUX output fuse	1 A F 20mm
Battery fuse	2 A F 20mm
Material	Heat resistant ABS body
Dimensions	327 x 297 x 104 mm
Weight (Without batteries)	1.4 kg
